How to modify the active/reactive power of an inverter on ShineMonitor - Web version
1. Introduce：
This document outlines the process of modifying active/reactive power on ShineMonitor platform.
ShineMonitor URL：http://hopewind.shinemonitor.com/index_cn.html?1625495564980
2. Steps to modify active/reactive power.

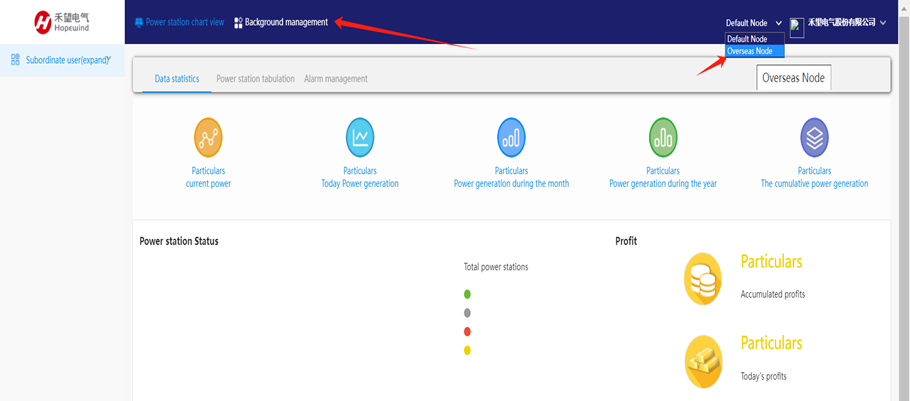

2.1 Log in to the ShineMonitor using your account.2.2 After entering, choose 【Overseas Node】 and then click on【Background Management】.

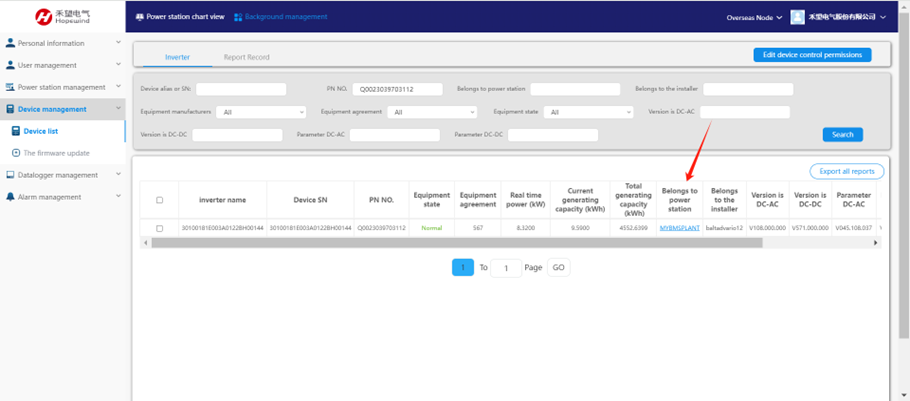

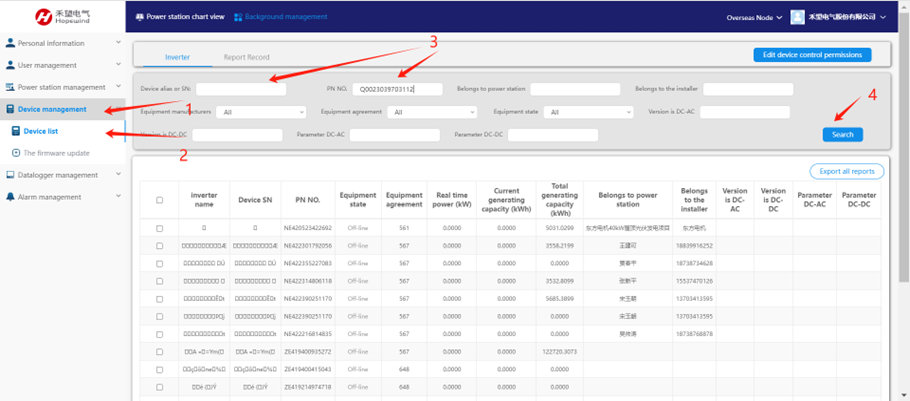

2.3 Click on 【Device Management】and then select 【Device List】. Next, input the WiFi dongle part number or the
inverter serial number. Finally, click on Search.

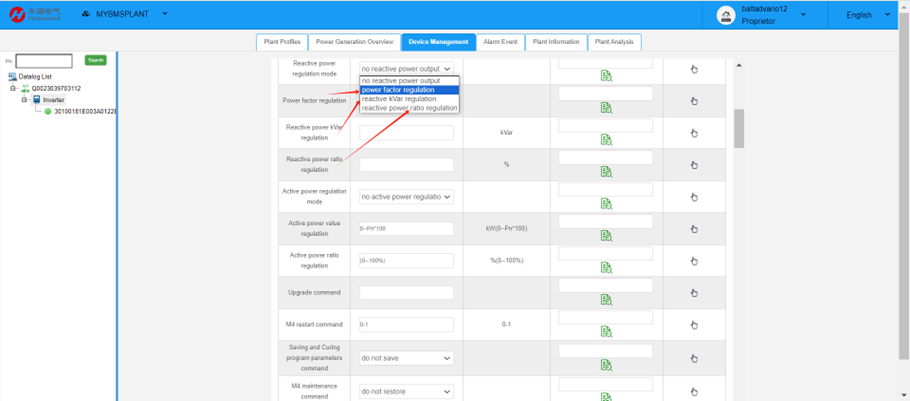

2.4 Before modifying the reactive power value, first change
the reactive power regulation mode to the corresponding setting, and then proceed
to modify the value.
2.5

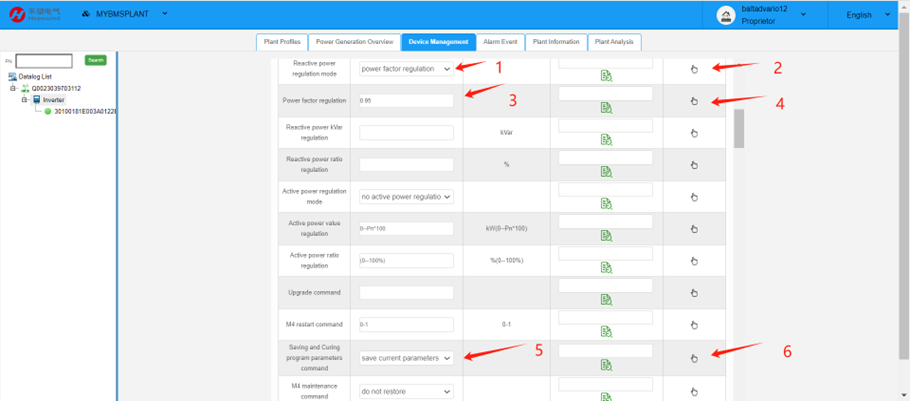

For example, if you want to set the 【Power factor
regulation】 to 0.95, follow the settings as shown in the
image below.
2.6 The active power setting involves the same process, first modify the regulation mode, and then set the value. Finally save the current parameters (Step 5).
