How to perform near-end commissioning using the hopeCloud APP

How to perform near-end commissioning using the hopeCloud APP

Purpose:

Upon commissioning the 250/350kW inverter, you can perform parameter setting and view operation data through the hopeCloud APP by connecting your smartphone to the inverters local WiFi access point.

 1．Download and install "hopeCloud" APP

   1.1 Search for the "hopeCloud" in APP store or Google Play.

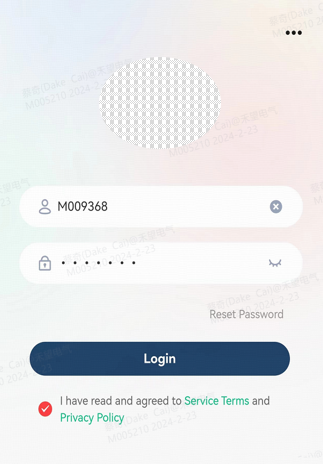

 2．Open “hopeCloud” App, and navigate to the login screen:

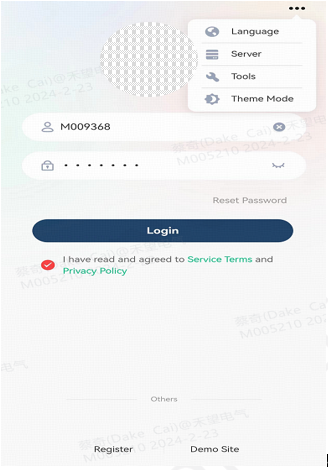

3. Click on the "... " in the upper right corner and click “Tools”.  As shown below,

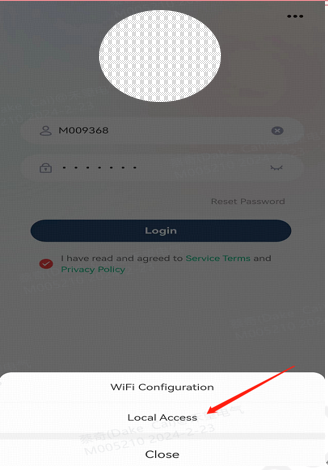

4．Click “Local Access”.  As shown below,

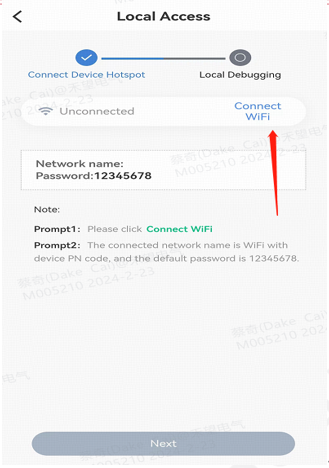

5. Click “Connect WiFi”. As shown below,

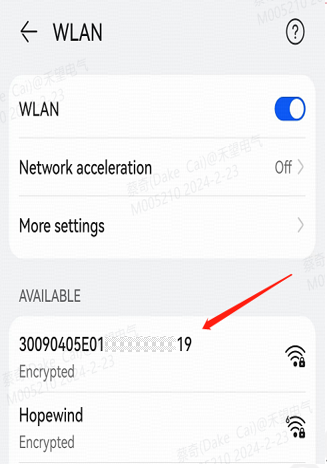

6. Find WiFi access point originating from the inverter. The SSID is the inverter's S/N (serial number). After locating the correct access point, connect to it. The WiFi password is “12345678”, as shown below.

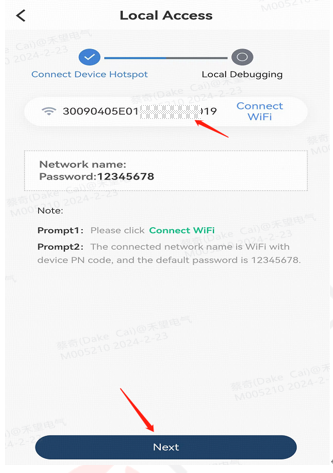

7．After the WiFi connection is successful, return to the "hopeCloud" APP, you will see the S/N of the inverter in the APP screen, and then click "Next" at the bottom. As shown below,

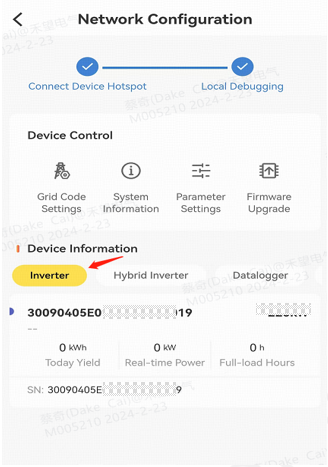

8. Now you can start with the commissioning process and/or check system information via using the hopeCloud App.
